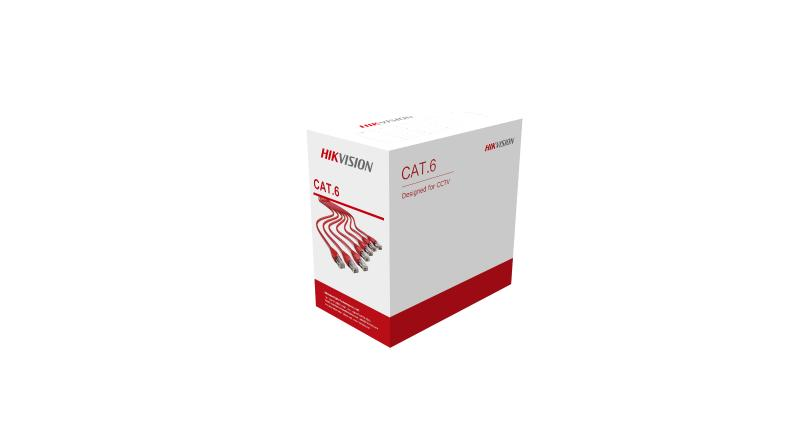

HIKVISION DS-1LN6U-SC0 305 m CAT6 UTP Network Cable

Hikvision DS-1LN6U-SC0 305m CAT6 Cable – Solid Copper Performance for Your Network in Kenya

Upgrade your network with HIKVISION DS-1LN6U-SC0 the ultimate in performance and reliability – the Hikvision 305m CAT6 UTP Network Cable, available now at Iken Computers, your trusted Hikvision dealer in Nairobi!

This premium cable boasts solid copper conductors (0.55mm) for exceptional signal quality and minimal resistance. It surpasses industry standards, adhering to ANSI/TIA-568-C.2, IEC61156, and ISO/IEC11801.

Here’s what sets this HIKVISION DS-1LN6U-SC0 CAT6 cable apart:

• Rock-Solid Performance: Engineered for Gigabit Ethernet speeds (up to 1 Gbps), ensuring smooth data transfer even under demanding loads.
• Built to Last: The robust sheath offers superior mechanical properties, withstanding high tensile and compressive forces to prevent damage during installation.
• Unmatched Reliability: Excels in Fluke tests, performing flawlessly at high temperatures (50°C) and under continuous PoE (Power over Ethernet) load (57V/1A DC power).
• Eco-Friendly: HIKVISION DS-1LN6U-SC0 Compliant with RoHS 2.0, minimizing environmental impact.

Ideal for:

• Connecting computers, network devices, and peripherals.
• Setting up a high-speed wired home network for flawless internet access and data sharing.
• Deploying a secure and reliable network for your business, ensuring optimal performance.
• Seamlessly integrating with Hikvision security cameras and other IP devices.

Features

General

• Rip-CordYes
• CategoryCat.6
• Sheath PrintingHIKVISION 4PR 23AWG 75°C U/UTP CAT6 VERIFIED TO ANSI/TIA-568-C.2 PVC ****m mm/dd/yyyy Tracing Code-HS
• Reference StandardISO/IEC11801, ANSI/TIA-568-C.2, RoHS 2.0
• Fire ResistanceNo
• SeparatorYes

Conductor

• MaterialSolid-Bare Copper (99.95%)
• Diameter0.55 ± 0.005 mm, 23 AWG

Insulation

• MaterialHDPE
• Diameter0.98 ± 0.05 mm

Sheath Physical Properties

• Before Aging

  Tensile strength ≥ 13.5 Mpa

  Elongation ≥ 150%

• Aging Period100°C × 24h × 10d
• After Aging

  Tensile strength ≥ 12.5 Mpa

  Elongation ≥ 125%

• Cold Bend-20 ± 2°C × 4h, 8 × cable O.D, no visible cracks

Electrical Characteristics(20℃)

• 1.0-250.0 MHz Impedance

  100 ± 15 Ω @ ≤ 100 MHz

  100 ± 25 Ω @100-250 MHz

• 1.0-250.0 Mhz Delay Skew≤ 45 ns/100 m
• DC Resistance≤ 9.38 Ω/100 m
• DC Conductor Resistance Unbalance≤ 5.0%
• Package Dimension400 mm (W) × 400 mm (H) × 240 mm (D) (15.75″ × 15.75″ × 9.45″)
• Weight12.3 ± 0.5kg
• Cable Length(305 ± 1.5) m
• Ambient Temperature-20°C to 75°C (-4°F to 167°F)
• Operating Voltage60 V

Sheath

• Thickness0.50 ± 0.10 mm
• MaterialPVC
• ColorOrange
• Diameter6.00 ± 0.30 mm
