EZVIZ DL05 Smart Fingerprint Lock | 5085 Lock Body | Keyless Entry & Remote App Control

EZVIZ DL05 Smart Fingerprint Lock | 5085 Lock Body | Keyless Entry & Remote App Control.

Upgrade to Truly Smart Security: Keyless Access & Remote Control Stop worrying about lost keys or forgotten passcodes. The EZVIZ DL05 Smart Fingerprint Lock offers a modern, high-security upgrade for your front door. With ergonomic fingerprint scanning, remote app control, and a sturdy 5085 lock body, it provides multi-layered protection for your home. Whether you are at work or on vacation, you can monitor your door’s status, grant temporary access to guests, and receive instant alerts directly to your phone.

Why the EZVIZ DL05 is the Smarter Choice for Your Home:

• Flexible Access Methods: Unlock your door your way—using advanced fingerprint recognition, personalized passcodes, proximity cards, or your smartphone via the EZVIZ App.

• Remote Management: Grant permanent or temporary access to family, friends, or service providers from anywhere in the world.

• Integrated Security: When paired with compatible EZVIZ cameras, the DL05 can trigger auto-recording whenever someone unlocks the door, providing you with immediate video proof of entry.

• Proactive Safety Features: Equipped with anti-tamper alarms, “wrong-attempt” lockout, and a child safety lock to ensure your family stays protected around the clock.

• Long-Lasting Performance: Enjoy up to 1 year of battery life. The DL05 also features a low-battery warning and a Type-C emergency power port to ensure you are never locked out.

• Durable Design: Featuring an IP65-rated weatherproof exterior, this lock is built to withstand the elements while maintaining a sleek, modern aesthetic.

Specifications

Specifications
Model	CS-DL05-R201-WBCP-GR (5085) / CS-DL05-R200-WBCP-BK (5085)
Material and Specification
Panel Material	Aluminum Alloy

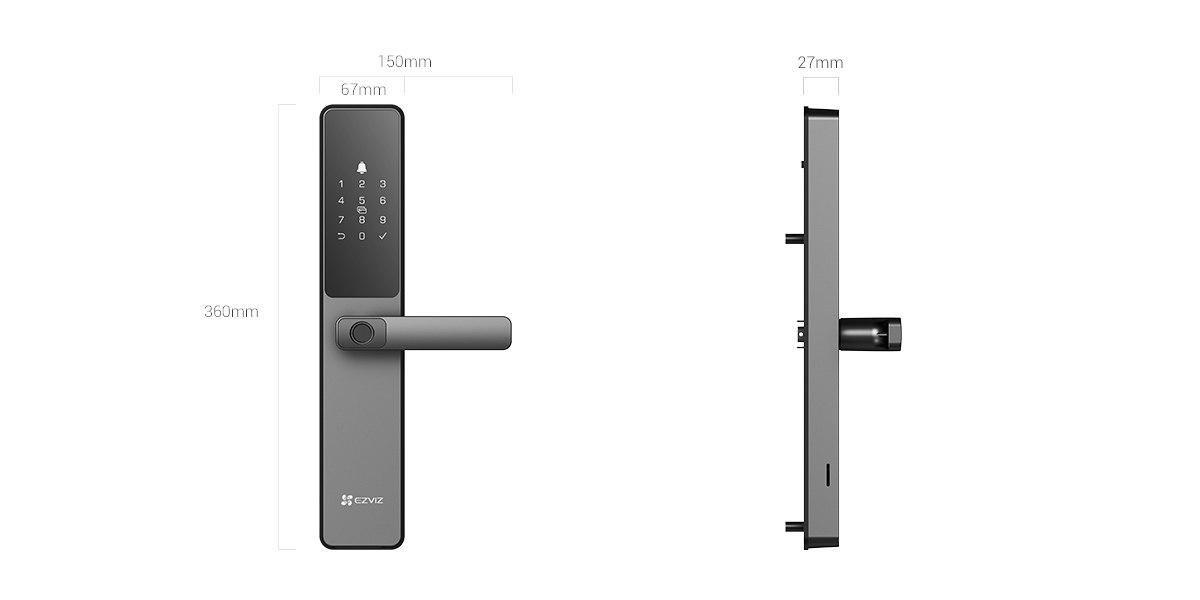

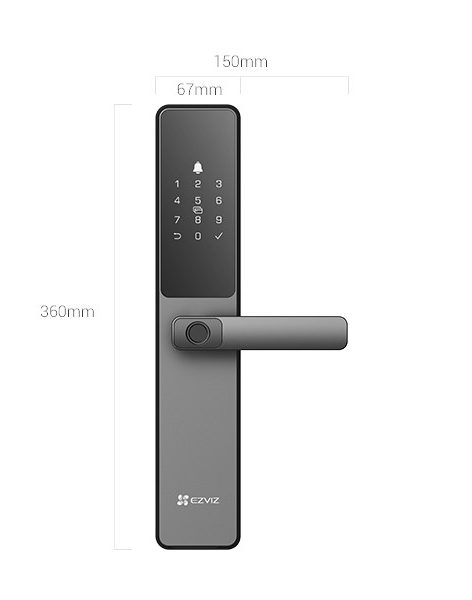

Panel Size	360 x 67 x 27 mm
Color	Metallic Grey
Unlocking Direction	Press the handle down to unlock; lift the handle up to lock.
Lock Body	5085
Weatherproof	IP65 (Front Panel)
Emergency Charging	Type-C
Working Power	1.5V AA alkaline batteries x 8
Technical Specification
Unlocking Methods	Fingerprint, Passcode, Proximity Card, Mechanical Key, Bluetooth Key via the EZVIZ App, Temporary Codes, Remote Unlocking
User Capacity	50 pcs
Fingerprint Capacity	50 pcs
Passcode Capacity	50 pcs
Card Capacity	50 pcs
Communication Methods	2.4 GHz Wi-Fi, Bluetooth
Temporary Access Codes	Supports
Anti-Peeping Code	Supports, Max. 20 digits
Low-Battery Warning	Supports
Privacy Mode	Supports
User Management	Supports
Real-Time Notification	Supports
Wrong-Attempt Protection	Supports, Five failed attempts in five minutes trigger a three-minute lockout
Anti-Tamper Alarm	Supports
Remote Control	Supports
Child Safety Lock	Supports
Supported Door Thickness	30-110 mm
Working Temperature	-25°C ~ 70°C
Operating Humidity	10% ~ 95%
In the box
In the box	– DL05 Smart Fingerprint Lock (Front Panel + Rear Panel + Hole Template)
	– Lock Body
	– Standard Screw Bag
	– Lock Body Screw Bag (2)
	– Locating Screw Bag
	– Reserving Screw (2)
	– AA-Sized Battery (8)
	– Mechanical Key (2)
	– Square Rod
	– Proximity Card (2)
	– Silicon Plug (For Rear Panel)
	– Regulatory Information
	– Quick Start Guide
Certifications
Certifications	CE (EMC / LVD / RED / ROHS) / REACH SVHC / WEEE
