Modern Access Control: Your Smart Door & Gate Management System Upgrade your home entrance with the EZVIZ HP5, a sleek 3-in-1 video doorphone system that combines a doorbell, security camera, and intercom into one elegant kit. Designed for villas and spacious homes, the HP5 allows you to see visitors, speak with them, and even unlock your gate or door—all from a 7-inch indoor touch screen or your smartphone. It’s the ultimate way to modernize your home security and eliminate the need for traditional keys.

Why the EZVIZ HP5 is the Modern Home Essential:

• 3-in-1 Convenience: Functions as a doorbell, camera, and intercom, offering a complete entrance management solution.

• Remote Access Control: Grant entry to guests or delivery personnel from anywhere in the world using the EZVIZ App.

• Flexible Access: Includes two RFID smart tags for quick “swipe-to-open” entry and supports both indoor monitor and mobile app unlocking.

• Stylish 7-Inch Touch Screen: A sleek, glossy black indoor monitor lets you view live feeds, manage settings, and save video history with ease.

• Enhanced Security: Features a 1080p wide-angle camera with night vision, ensuring you always see who is at your door—day or night.

• Privacy-First Design: Utilize the voice-changer feature to communicate safely and set up “no-filming zones” to protect your neighbors’ privacy.

Specifications

Specifications
Model	CS-HP5-R100-1W2TFC
Outdoor Doorbell
Image Sensor	1/2.7″ Progressive Scan CMOS (Supports low light sensitivity)
Lens	2.0 mm @ F1.6,viewing angle: 134° (Diagonal)
Day & Night	IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m)
Max. Resolution	1920 × 1080 (1080p)
DNR	2D / 3D DNR
Video Compression	H.265 / H.264
Frame Rate	Max: 15fps; Self-Adaptive during network transmission
Connection and Function
Connection Method	Wired connection (2-Wired, capable with 4-Wired), digital signal transmission
Transmission Distance	Φ 2 x 0.75mm² , max. 50m Φ 2 x 1.5mm² , max. 100m Twisted pair, max. 120m
Open the door (Gate)	Support 2 wiring ports. 1-10m distance. The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A
Unlock (Electric strike plate)	Support 2 wiring ports. 1-10m distance. The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, otherwise should do as user manual.
Door Open Methods	1.RFID badge unlock (CPU card × 2 pcs) 2.App remote unlock 3.Indoor display unlock
Outdoor Doorbell Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Doorbell Button	1 doorbell button (Can be set to become illuminated or not).
Terminal	Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate.
Functions
Tamper Alarm	Supports
Video Intercom	Long-distance video two-way talk
General
Operation Conditions	-30°C to 60°C , Humidity 95% or less (non-condensing)
IP Grade	Waterproof, with shield cover

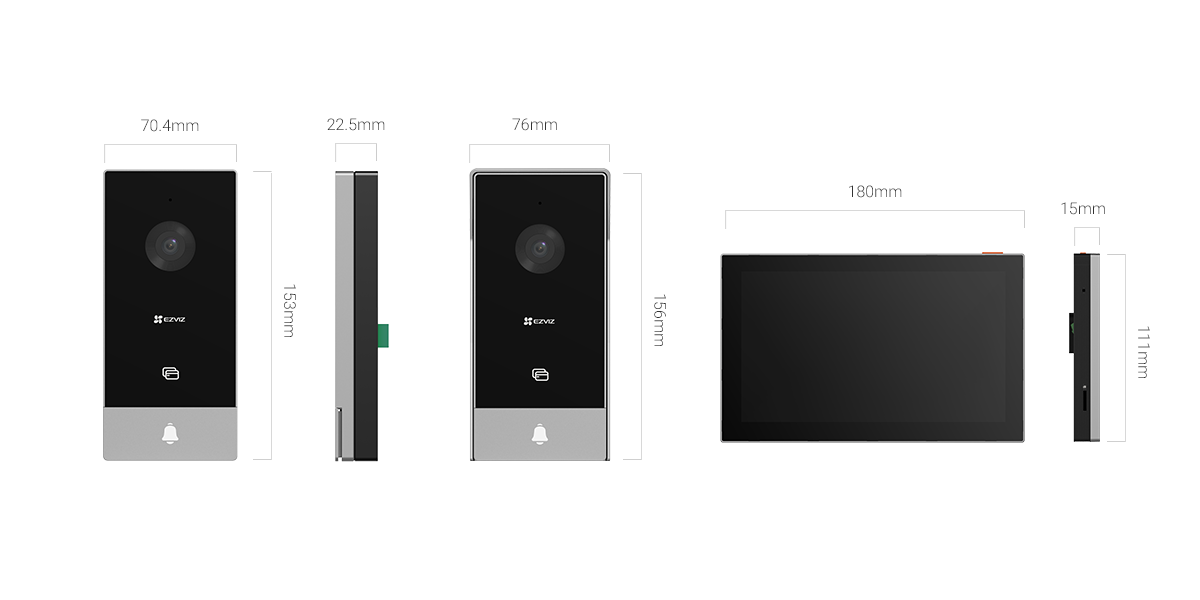

Size	153 × 70.4 × 22.5 mm (7.02 × 2.77 × 0.89 inch)
Interior Display
Display size	7” touch screen
Resolution	1024 × 600
Interface
Audio Input	Built-in high-sensitivity microphone
Audio Output	Built-in high-power speaker
Button	Screen On / Off Button
Terminal	Two wiring ports to connect 1st outdoor doorbell.
Storage	Supports microSD card up to 512 GB Supports EZVIZ Cloud storage
Network Parameters
Interface Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Cloud Proprietary Protocol
Protocol	EZVIZ Connect Protocol
Wi-Fi Parameters
Wi-Fi Standard	IEEE802.11b, 802.11g, 802.11n, 802.11ac
Frequency Range	2.4G: 2.4 GHz ~ 2.4835 GHz 5G: 5.15 GHz ~ 5.25 GHz
Channel Bandwidth	Supports 20MHz
Security	64 / 128-bit WEP,WPA / WPA2, WPA-PSK / WPA2-PSK
Transmission Rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps
Function
Multiple ringtones	Up to 20 ringtones
Functions	Live view, playback, two-way talk, video call
General
Operation Conditions	-10°C to 45°C, humidity 95% or less (non-condensing)
Size	180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch)
Power Supply	DC 24V 1.5A power supply, adaptor (100-240Vac)
Power Consumption	8W, Max. 24W
Products Weight (HP5)
Net Weight	639g (22.54oz)
With Package	1505g (53.09 oz)
In the box
In the box	– Monitor
	– Wall Bracket for Monitor
	– Power Adapter for Monitor
	– Intercom Panel
	– Drill Template for Monitor
	– Drill Template for Intercom Panel
	– Name Card (×2)
	– Screwdriver
	– Badges (×2)
	– Screw Kit (×2)
	– Wires and Wire Connectors
	– DC 24V Power Supply Jack Connector Cable
	– Regulatory Information (×2)
	– Quick Start Guide
Certifications
Certifications	CE / REACH / WEEE / RoHS
