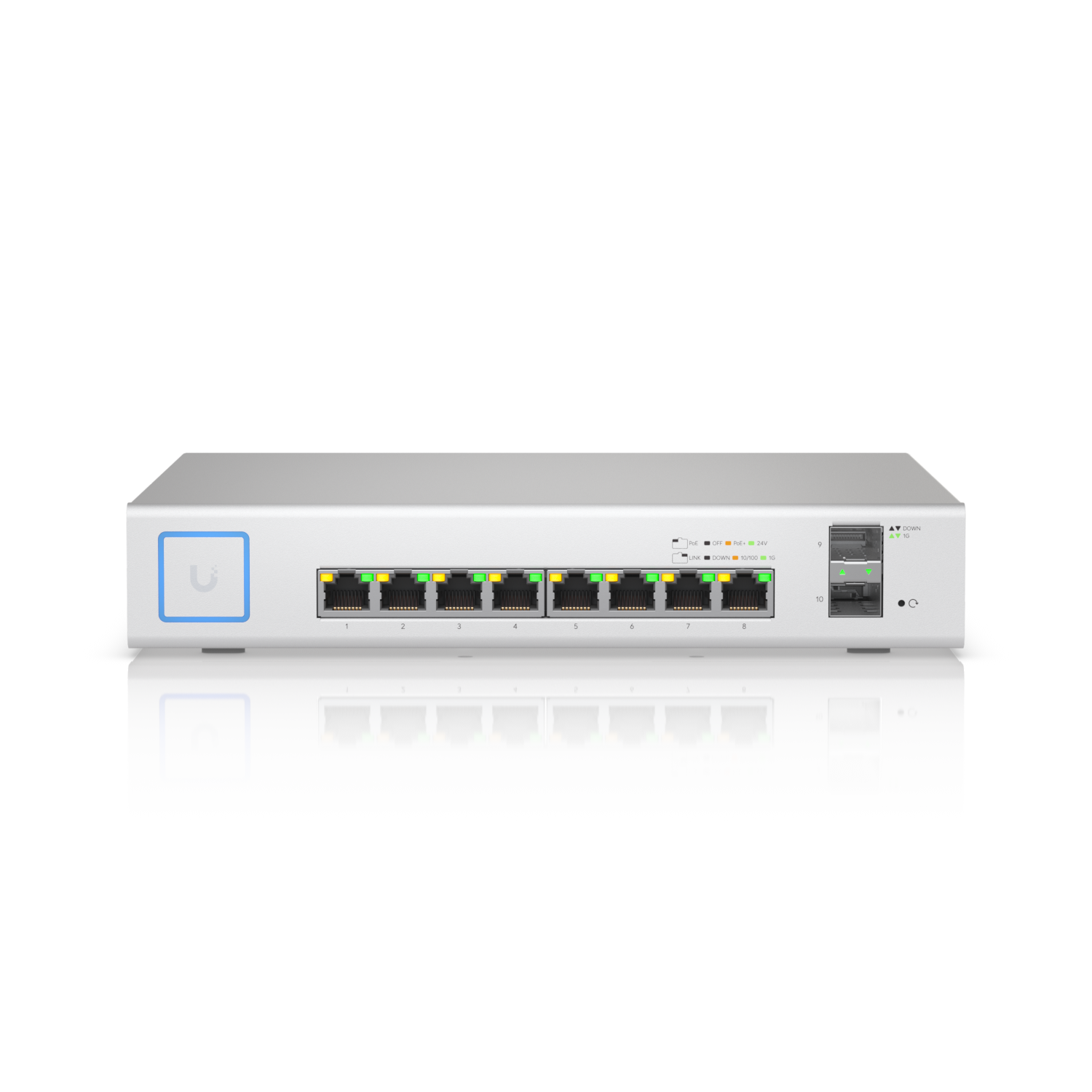

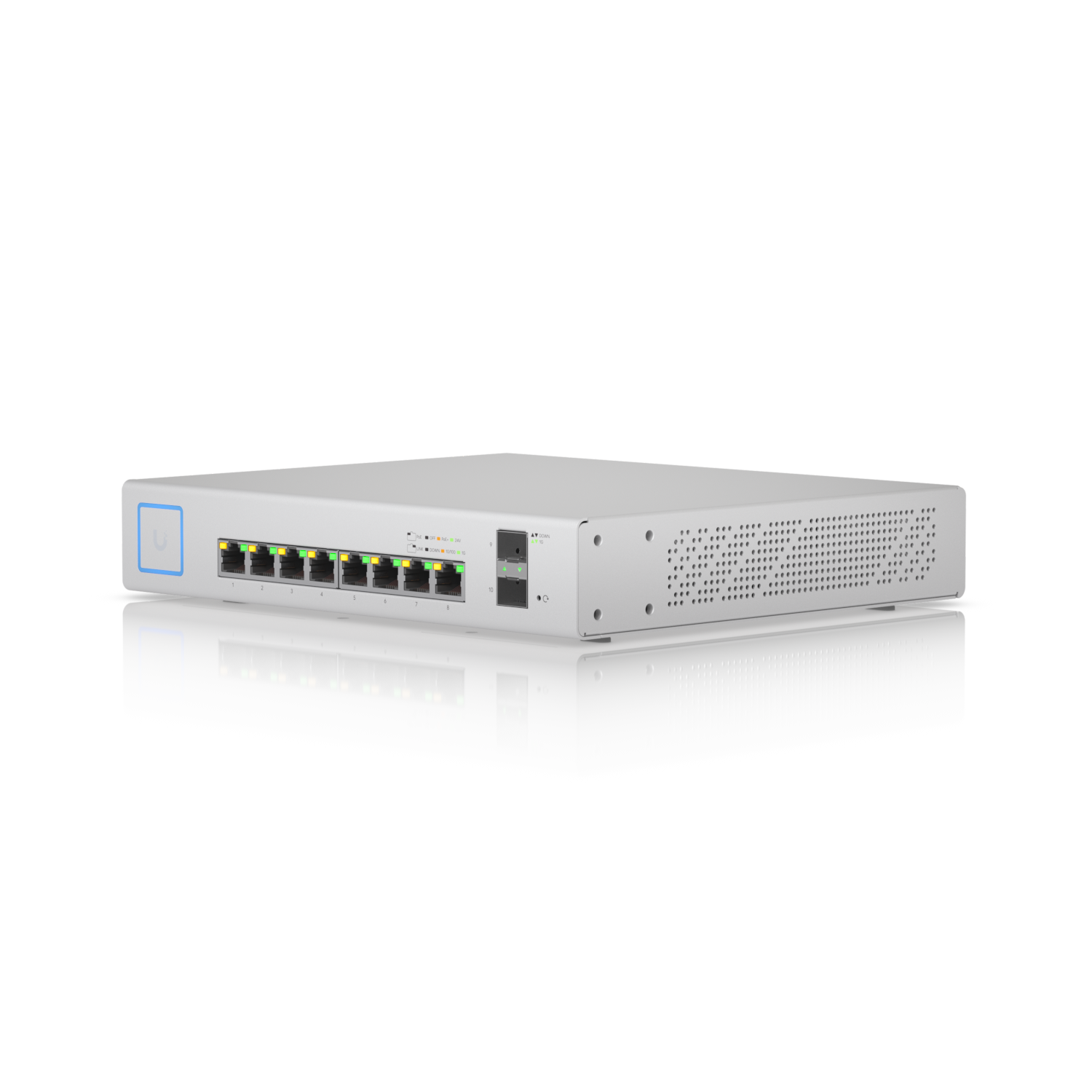

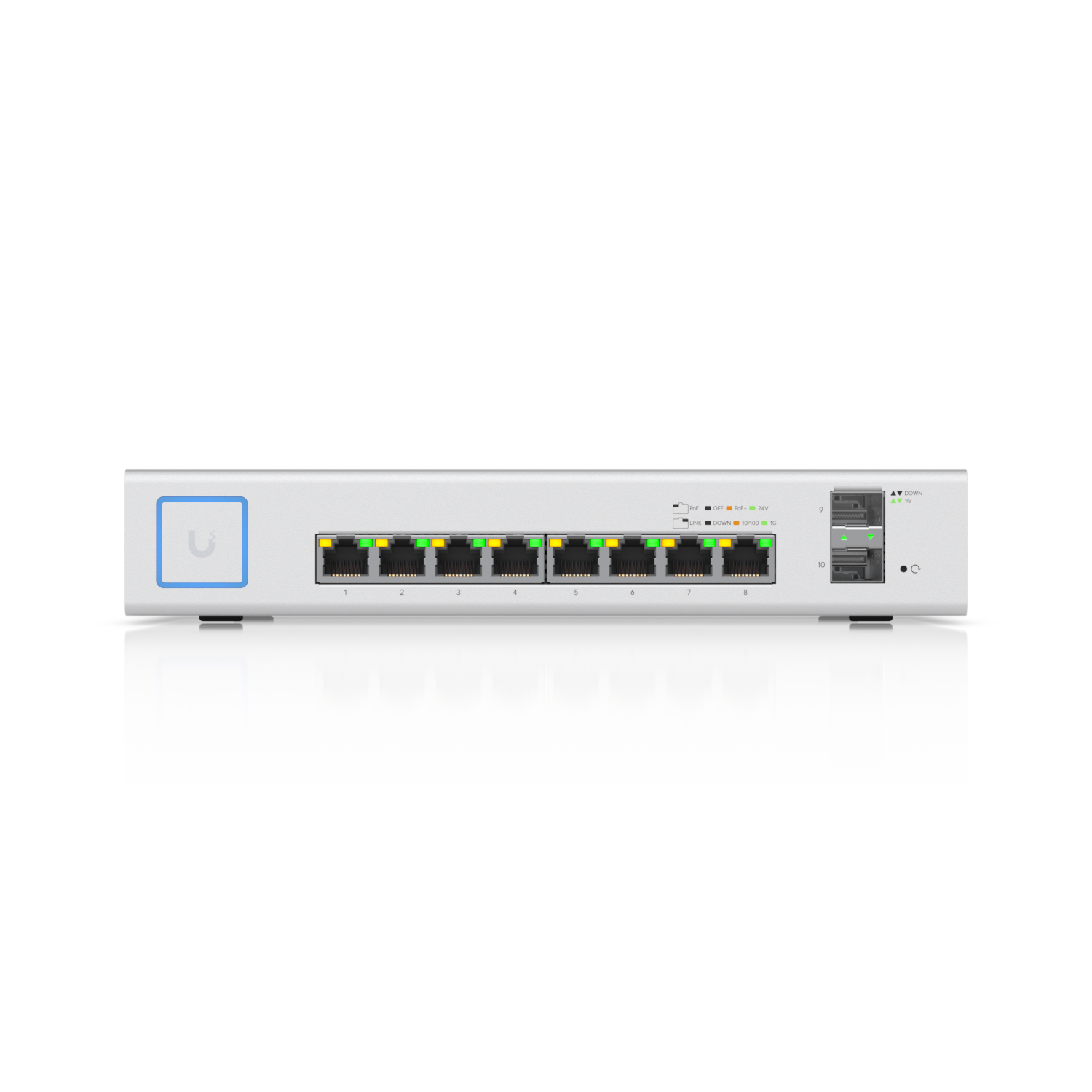

Ubiquiti US-8-150W: 8-Port Gigabit PoE Switch
The Ubiquiti US-8-150W is a powerful and versatile 8-port Gigabit switch designed to enhance your network infrastructure. With a robust 150W PoE budget, this switch provides reliable power to a wide range of PoE devices, including access points, IP cameras, and VoIP phones.
Key Features:
- Eight Gigabit Ethernet Ports: Provides high-speed connectivity for your network devices.
- 150W PoE Budget: Powers multiple PoE devices simultaneously.
- PoE+ Support: Supports both 802.3af and 802.3at PoE standards.
- Two SFP Ports: Offers flexibility for fiber uplinks, enabling network scalability and expansion.
- Advanced Layer 2 Features: Supports VLANs, QoS, and port mirroring for enhanced network performance and security.
- Compact and Rack-mountable: Designed for easy installation and integration into various environments.
- UniFi Controller Management: Easily manage and monitor your network through the intuitive UniFi Controller software.
Benefits:
- Enhanced Network Performance: Improves network speed, reliability, and efficiency.
- Simplified Network Management: Easily manage and configure your network through the UniFi Controller.
- Increased Productivity: Enables seamless connectivity for a wide range of devices.
- Scalability and Flexibility: Supports future network growth with SFP ports for fiber connectivity.
Purchase from Iken Computers:
For a convenient and hassle-free shopping experience, consider purchasing the Ubiquiti US-8-150W from Iken Computers. As the national distributor of Ubiquiti products in Kenya, Iken Computers offers a wide range of networking equipment, including UniFi switches, at competitive prices and with excellent customer service
| Mechanical | |
|---|---|
| Dimensions | 235 x 43 x 204 mm (9.3 x 1.7 x 8″) |
| Weight | 1.7 kg (3.7 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (8) GbE RJ45 ports (2) 1G SFP ports |
| PoE interface | (8) PoE/PoE+ 2-pair (Pins +1, 2; -3, 6) 24V DC/0.7A passive PoE 2-pair (Pins +4, 5; -7, 8) |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | Universal input, 100—240V AC, 50/60 Hz |
| Power supply | AC/DC, internal, 150W |
| Max. power consumption | 20W (Excluding PoE output) 150W (Including PoE output) |
| Total available PoE | 130W |
| Max. PoE wattage per port by PSE | PoE: 17W PoE+: 34W |
| Voltage range PoE mode | 24V passive PoE: 20–27V PoE+: 50—57V |
| ESD/EMP protection | Air/contact: ± 24kV |
| Button | Factory reset |
| Ambient operating temperature | -5 to 45° C (23 to 113° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| LEDs | |
| Ethernet | PoE Speed/link/activity |
