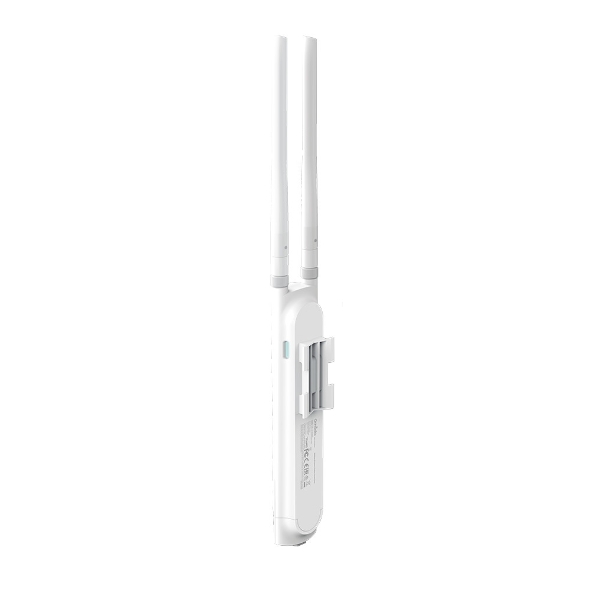

TP-Link EAP110-Outdoor: Conquer Outdoor Connectivity
Expand your Wi-Fi coverage beyond the confines of your home or business with the TP-Link EAP110-Outdoor Access Point. Engineered to thrive in challenging outdoor environments, this robust device delivers reliable and high-speed wireless connectivity. Whether you’re aiming to enhance coverage for a sprawling backyard, create a seamless Wi-Fi experience for outdoor events, or extend network reach to remote locations, the EAP110-Outdoor is your ideal solution. Its IP65 weatherproof enclosure ensures protection against the elements, while powerful antennas and high-performance hardware deliver exceptional Wi-Fi range and speed. Seamlessly integrate the EAP110-Outdoor into your existing network with the Omada SDN platform for centralized management and control.
Key Features:
- Weatherproof Design: The IP65-rated enclosure protects against rain, dust, and extreme temperatures, ensuring uninterrupted performance.
- Powerful Coverage: Benefit from up to 300Mbps Wi-Fi speeds and extended range thanks to high-power amplifiers and professional antennas.
- Centralized Management: Easily manage multiple access points with the Omada SDN platform, providing centralized control and monitoring.
- Flexible Deployment: Supports Passive PoE for convenient installation and power supply.
- Secure Guest Access: Create a dedicated guest network with multiple authentication options to protect your main network.
Experience the power of outdoor Wi-Fi with the TP-Link EAP110-Outdoor, available at Iken Computers, your trusted partner for networking solutions.
HARDWARE FEATURES | |
---|---|

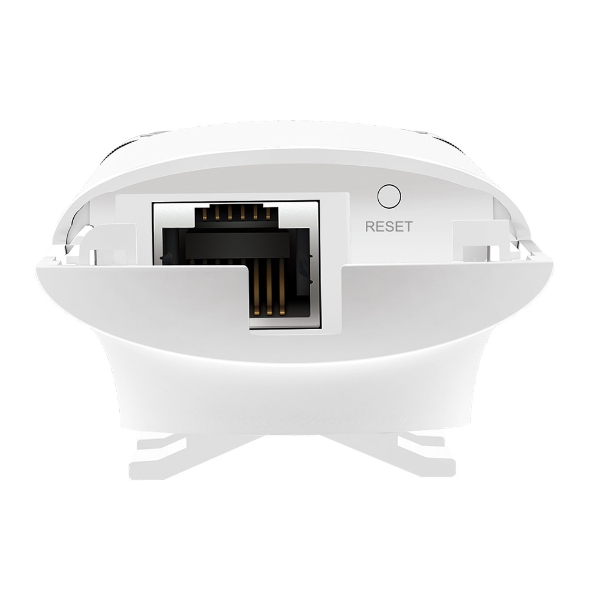

Interface | 1× Fast Ethernet (RJ-45) Port (Support Passive PoE) |
Button | Reset |
Power Supply | 24V Passive PoE (+4,5pins; -7,8pins. PoE Adapter Included) |
Power Consumption | 3.12 W |

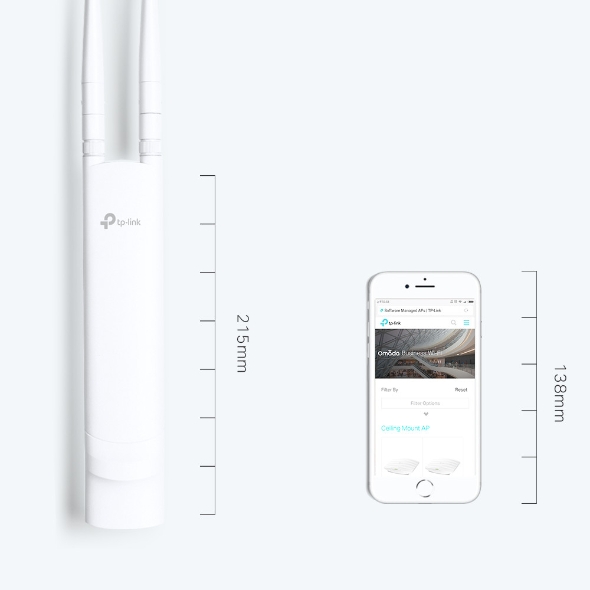

Dimensions ( W x D x H ) | 1.8 × 1.1 × 8.5 in (46 × 26.7 × 214.9 mm) |
Antenna Type | 2× 3 dBi External Omni waterproof |
Weatherproof Enclosure | IP65 |
Mounting | Pole / Wall Mounting (Kits included) |
WIRELESS FEATURES | |
---|---|
Concurrent Clients | 100+** |
Wireless Standards | IEEE 802.11n/g/b |
Frequency | 2.4 GHz |
Signal Rate | • 11n: Up to 300 Mbps (dynamic) • 11g: Up to 54 Mbps (dynamic) • 11b: Up to 11 Mbps (dynamic) |
Transmit Power | • CE: ≤20 dBm (EIRP) • FCC: ≤22 dBm |
Wireless Functions | • Multiple SSIDs(Up to 8 SSIDs) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • Seamless Roaming(802.11r) • QoS(WMM) • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client |
Wireless Security | • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, WPA-PSK / WPA2-PSK |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
Cloud Access | Yes. Requiring the use of OC300, OC200, or Omada Software Controller. |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/Remote Syslog |
SSH | Yes |
Web-based Management | HTTP/HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | • 300Mbps Wireless N Outdoor Access Point, EAP110-Outdoor • Passive PoE Adapter • Power Cord • Mounting Kits • Waterproof Rubber Insert • Waterproof Antennas • Installation Guide |
System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11, Linux |
Environment | • Operating Temperature: -30–65 ℃ (-22–149 ℉) • Storage Temperature: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
