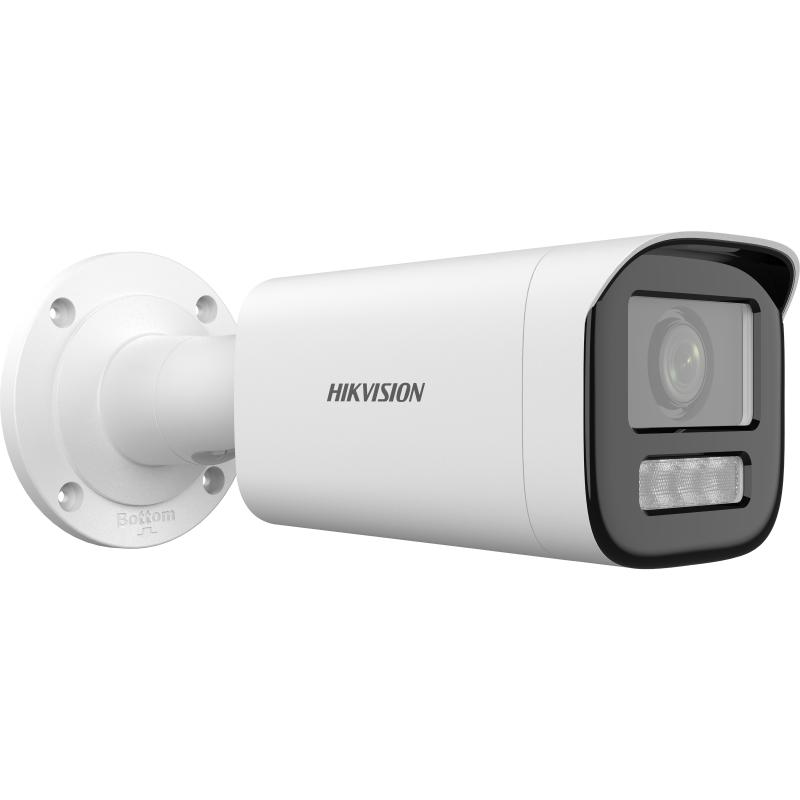

Hikvision DS-2CD1643G2-LIZ(S)U: 4MP Dual Light MD 2.0 Varifocal Bullet Network Camera
Enhance your security with the Hikvision DS-2CD1643G2-LIZ(S)U, a 4MP Dual Light MD 2.0 varifocal bullet camera featuring advanced technologies like Smart Hybrid Light, 120dB true WDR, H.265+ compression, and Human & Vehicle Detection. This robust camera offers IP67 & IK08 protection, a motorized varifocal lens, and built-in microphone for enhanced situational awareness.
Key Features of Hikvision DS-2CD1643G2-LIZ(S)U:
- 4MP High Resolution: Provides high-quality 2560x1440p video footage with exceptional detail.
- Dual Light Technology: Combines infrared and white light for optimal illumination in various lighting conditions.
- Human & Vehicle Detection: Accurately detects human and vehicle targets, reducing false alarms.
- 120dB True WDR: Enables clear imaging even in challenging lighting conditions with strong backlighting.
- H.265+ Compression: Efficiently compresses video data, reducing storage requirements and bandwidth usage.
- Motorized Varifocal Lens: 2.8mm to 12mm motorized varifocal lens for flexible field of view adjustment.
- Built-in Microphone: Enables audio recording for enhanced situational awareness.
- Weatherproof & Vandal-Proof: IP67 rated for dust and water resistance, and IK08 rated for vandalism resistance.
- On-Board Storage: Supports on-board storage up to 512GB (SD card slot) for local video recording (optional).
Benefits of Hikvision DS-2CD1643G2-LIZ(S)U:
- Enhanced Security: Dual Light technology, Human & Vehicle Detection, 120dB True WDR, built-in microphone, and robust construction enhance security and situational awareness.
- Exceptional Image Quality: 4MP resolution and advanced image processing technologies deliver clear and detailed video footage in any lighting condition.
- Flexible Installation: Motorized varifocal lens allows for easy field of view adjustment to suit various surveillance needs.
- Efficient Storage: H.265+ compression optimizes storage space and reduces bandwidth requirements.
- Reliable Operation: IP67 and IK08 ratings ensure reliable performance in challenging environments.
Purchase from Iken Computers:
For a convenient and hassle-free shopping experience, consider purchasing the DS-2CD1643G2-LIZ(S)U from Iken Computers, the Authorized dealer of Hikvision products in Kenya. Iken Computers offers a wide range of security solutions, including IP cameras, at competitive prices and with excellent customer service.
Category | Specification |
---|---|
Camera | |
Image Sensor | 1/3″ Progressive Scan CMOS |
Max. Resolution | 2560 × 1440 |
Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
Shutter Time | 1/3 s to 1/100,000 s |
Day & Night | IR cut filter |
Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° |
Lens | |
Lens Type | Varifocal lens, motorized lens, 2.8 to 12 mm |
Focal Length & FOV | 2.8 to 12 mm, Horizontal FOV: 96.7° to 29.7°, Vertical FOV: 51.7° to 16.7°, Diagonal FOV: 114.3° to 34° |
Lens Mount | Ø14 |
Iris Type | Fixed |
Aperture | F1.6 |
DORI | |
Detection | 64.0 to 198.0 m |
Observation | 25.4 to 78.6 m |
Recognition | 12.8 to 39.6 m |
Identification | 6.4 to 19.8 m |
Illuminator | |
Supplement Light | IR, White Light |
Range | Up to 50 m |
Smart Light | Yes |
IR Wavelength | 850 nm |
Video | |
Main Stream | 50 Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720) |
Sub-Stream | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360); 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
Video Compression | Main Stream: H.265+/H.265/H.264+/H.264; Sub-Stream: H.265/H.264/MJPEG |
Video Bit Rate | 32 Kbps to 16 Mbps |
H.264 Type | Baseline Profile, Main Profile, High Profile |
H.265 Type | Main Profile |
Bit Rate Control | CBR, VBR |
SVC | H.264 and H.265 encoding |
ROI | 1 fixed region for main stream |
Audio | |
Audio Type | Mono sound |
Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
Bit Rate | 64 Kbps (G.711ulaw/G.711alaw), 16 Kbps (G.722.1), 16 Kbps (G.726), 32 to 160 Kbps (MP2L2), 16 to 64 Kbps (AAC-LC) |
Sampling Rate | 8 kHz/16 kHz |
Noise Filtering | Yes |
Network | |
Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
Simultaneous View | Up to 6 channels |
API | ONVIF (Profile S/G/T), ISAPI, SDK |
Security | Password protection, watermark, HTTP authentication, security audit, MAC address authentication |
Users | Up to 32 users (Administrator, Operator, User) |
Web Browser | IE 10/11 (with plug-in), Chrome 57+, Firefox 52+, Edge 89+ |
Image | |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via software |
Day/Night Switch | Day, Night, Auto, Schedule |
WDR | 120 dB |
SNR | ≥ 52 dB |
Enhancement | BLC, HLC, 3D DNR |
Privacy Mask | 4 programmable polygon privacy masks |
Interface | |
Ethernet | 1 RJ45 10M/100M self-adaptive Ethernet port |
On-Board Storage | MicroSD/microSDHC/microSDXC, up to 512 GB |
Microphone | Built-in |
Alarm | 1 input, 1 output (-S model) |
Reset Key | Yes |
Event | |
Basic Event | Motion detection (human and vehicle), video tampering, exception |
Linkage | Upload to FTP/memory card, notify center, send email, trigger alarms, etc. |
General | |
Power | 12 VDC ± 25% (11 W max), PoE (IEEE 802.3af, Class 3, 12.9 W max) |
Material | Metal & Plastic |
Dimensions | Ø105 mm × 252 mm (Ø4.13 × 9.92″) |
Weight | Approx. 585 g (1.3 lb), with packaging: 910 g (2.0 lb) |
Operating Conditions | -30°C to 60°C (-22°F to 140°F), Humidity: ≤ 95% (non-condensing) |
Approvals | EMC, Safety, Environment (CE, UL, BIS, WEEE, IP67) |
