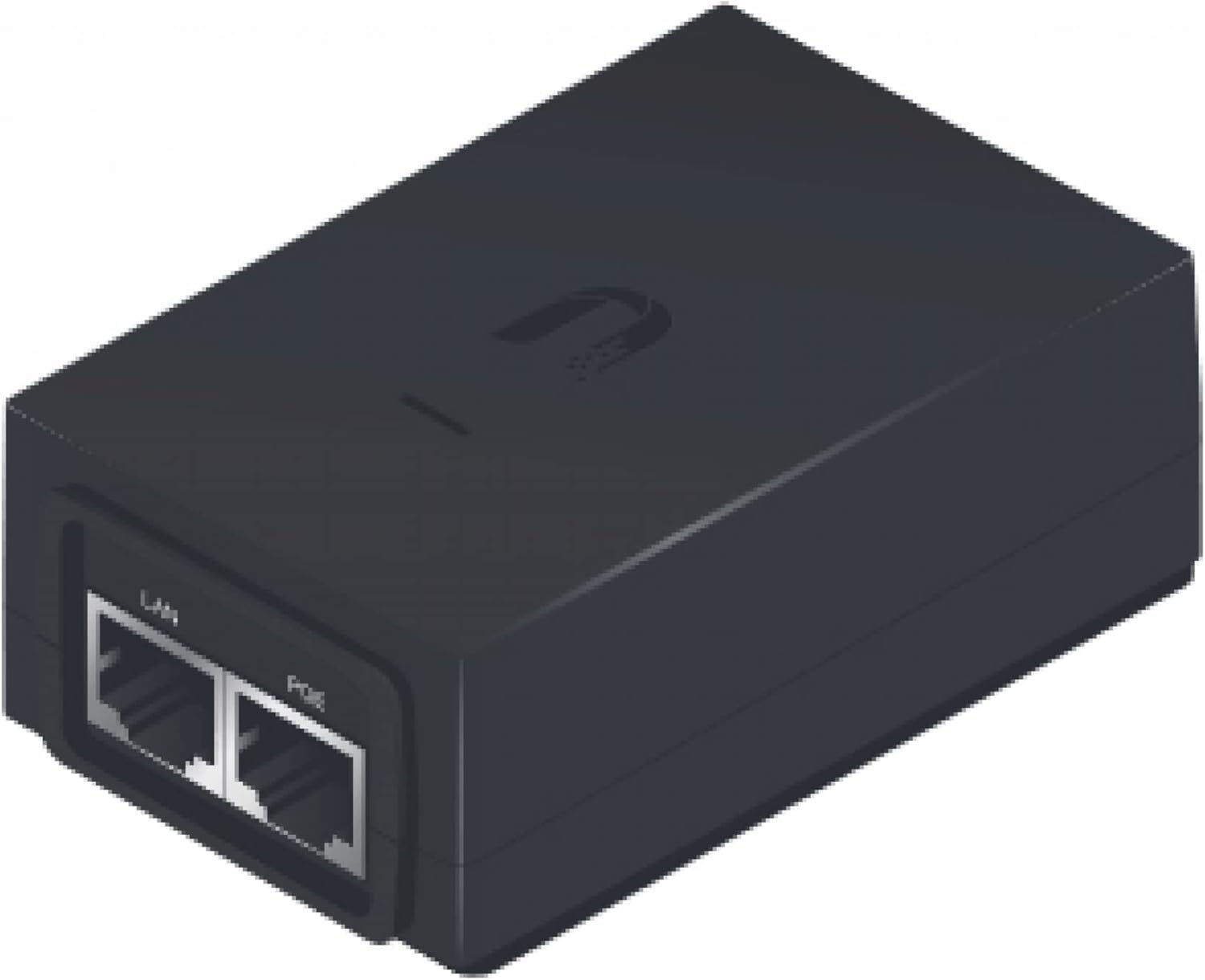

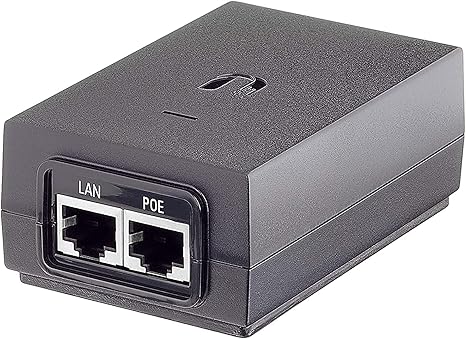

Ubiquiti 48V PoE Adapter: Powering Your Ubiquiti Devices
The Ubiquiti 48V PoE Adapter is a crucial component for powering a wide range of Ubiquiti devices, including those from the airFiber, airMAX, airVision, UniFi, and mFi series. This robust adapter ensures reliable power delivery while offering essential protection for your valuable equipment.
Key Features:
- Universal Compatibility: Powers a diverse range of Ubiquiti PoE devices, offering flexibility and convenience.
- Enhanced Protection: Includes built-in surge protection to safeguard your devices from power surges, spikes, and electrical disturbances.
- Reliable Power Delivery: Provides stable and consistent 48V power to your devices for optimal performance.

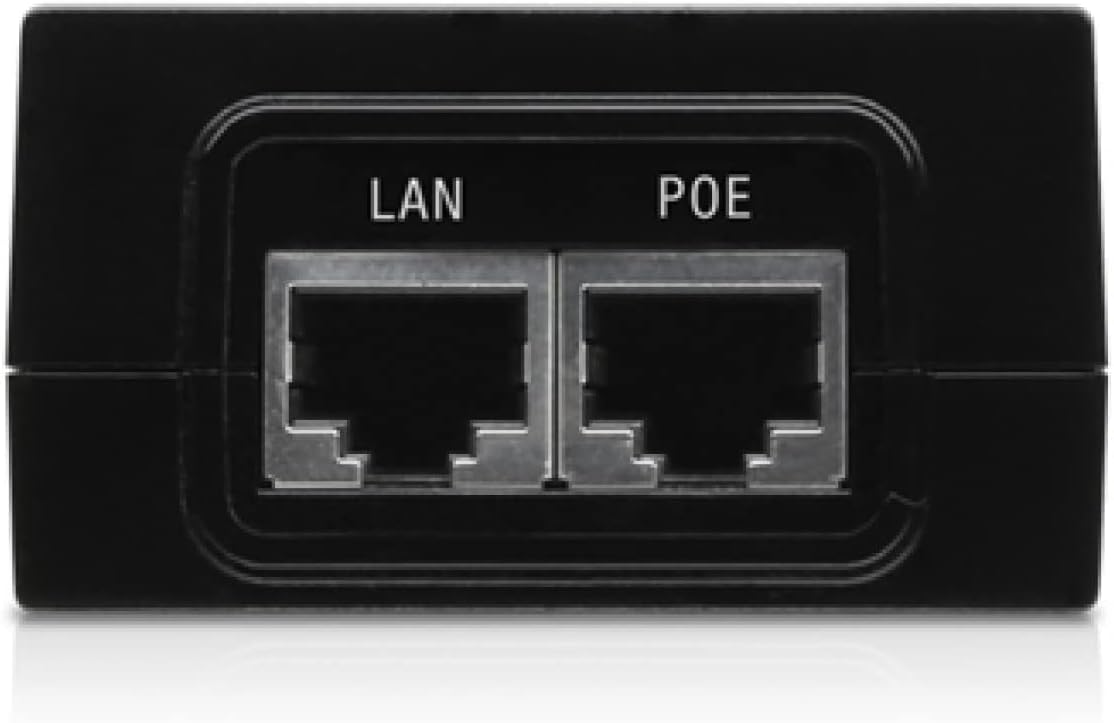

- Gigabit Ethernet Port: Enables high-speed data transmission for seamless network connectivity.
- Earth Grounding: Provides a secure grounding connection for enhanced safety.
Benefits:
- Reliable Power: Ensures consistent and reliable power delivery to your Ubiquiti devices.
- Enhanced Protection: Safeguards your devices from potential electrical damage.
- Improved Performance: Provides stable power for optimal device performance and longevity.
- Easy Installation: Simple and straightforward to install and connect.
Purchase from Iken Computers:
For a convenient and hassle-free shopping experience, consider purchasing the Ubiquiti Networks 48V PoE Adapter from Iken Computers. As the national distributor of Ubiquiti products in Kenya, Iken Computers offers a wide range of networking equipment, including Ubiquiti accessories, at competitive prices and with excellent customer service.
Technical Specification
| POE-48-24W-G | |
|---|---|
| Dimensions | 92 x 60 x 33 mm (3.6 x 2.4 x 1.3″) |
| Weight | 159 g (5.6 oz) |
| Output voltage | 48V DC @ 0.5A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100-240V AC @ 50/60Hz |
| Input current | 0.6A @ 120V AC, 0.4A @ 240V AC |
| Inrush current | <65A Peak @ 120V AC, <130A peak @ 230V AC |
| Efficiency | 80+% |
| Output ripple | 1% Max. |
| Switching frequency | 65 kHz |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and Pins 7, 8 (-) |
| 4-pair powering | – |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 35 to 95% noncondensing |

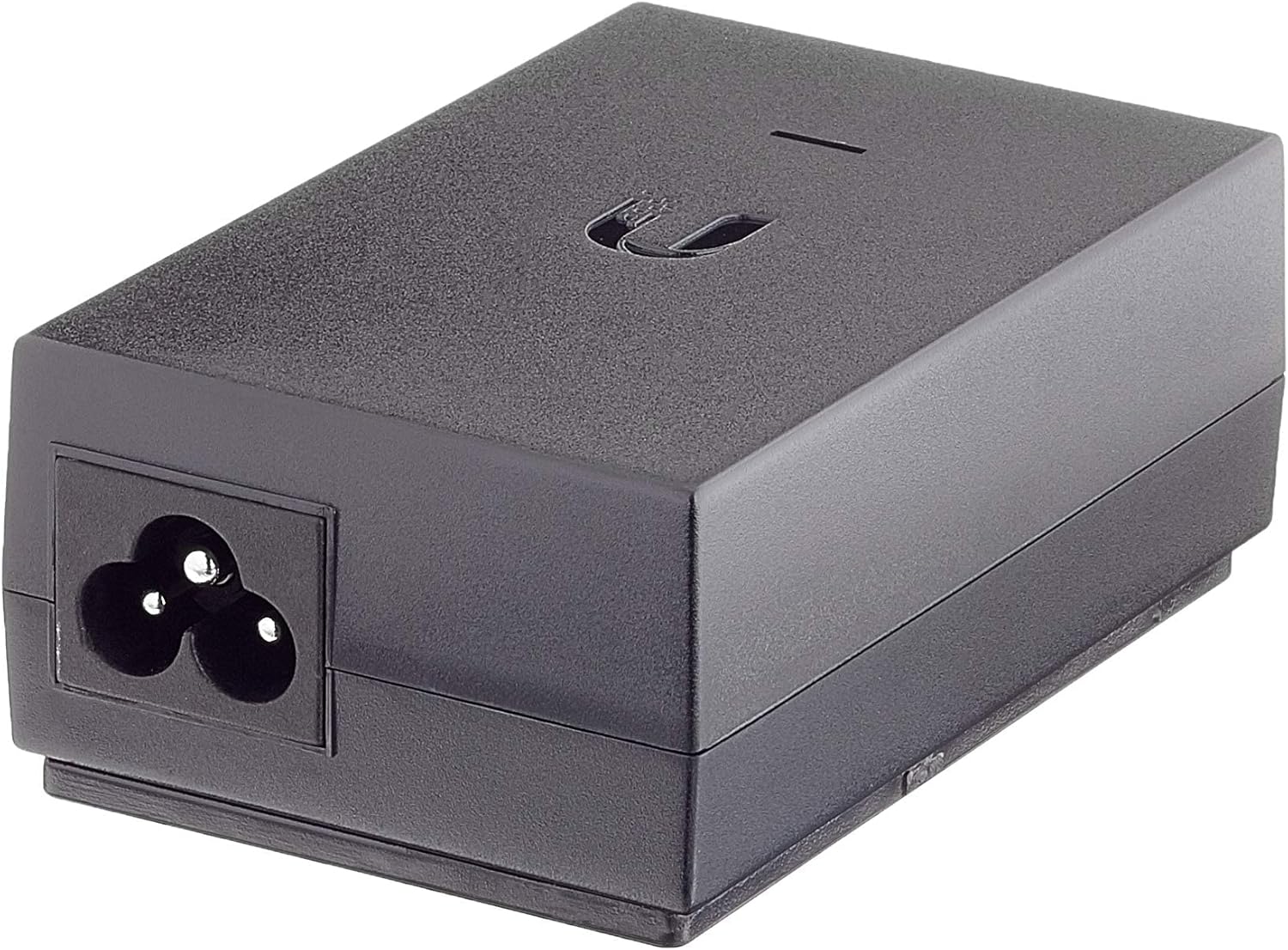

| AC connector | IEC-320 C6 |
| Data IN / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Certifications | CE, FCC, IC, UL |
