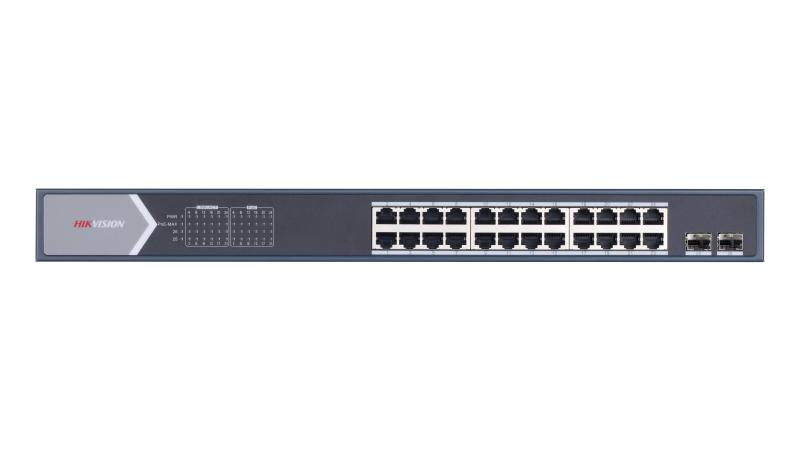

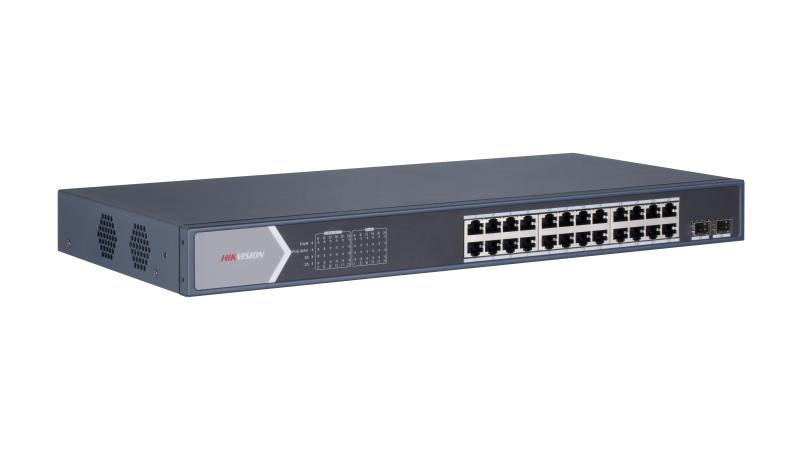

DS-3E0526P-E/M 24 Port Gigabit Unmanaged POE Switch
- 24 × Gigabit PoE ports, 2 × Gigabit SFP fiber optical ports.
- IEEE 802.3at/af standard.
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard
- 6 KV surge protection for PoE ports
- PoE power management
- Gigabit network access
- Wire-speed forwarding
- Store-and-forward switching
- Solid high-strength metal shell
- DS-3E0526P-E/M
Technical Details
-
- Network Parameters
- Ports24 × Gigabit PoE port,2 × Gigabit fiber optical port
- MAC Address Table8 K
- Switching Capacity52 Gbps
- Packet Forwarding Rate38.69 Mpps
- Internal Cache4.1 Mbits
- PoE Power Supply
- PoE StandardIEEE 802.3af;IEEE 802.3at;
- PoE Power PinEnd-span: 1/2(+), 3/6(-)
- PoE PortPoE: Ports 1 to 24
- Max. Port Power30 W
- PoE Power Budget225 W
- Dialing Function
- Long Range/
- Port Isolation/
- PoE Watchdog/
Summary
-
- PoE Watchdog/
- General
- ShellMetal material
- Net Weight2.92 kg (6.44 lb)
- Gross Weight4.12 kg (9.08 lb)
- Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- Operating Temperature0 °C to 45 °C (32 °F to 113 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply100-240 VAC, 50/60 Hz, Max. 4 A;
- Max. Power Consumption250 W
- Power Consumption In Idle25 W
- Installation ModeRack (equipped with mounting ears)
- Surge Protection6 KV
