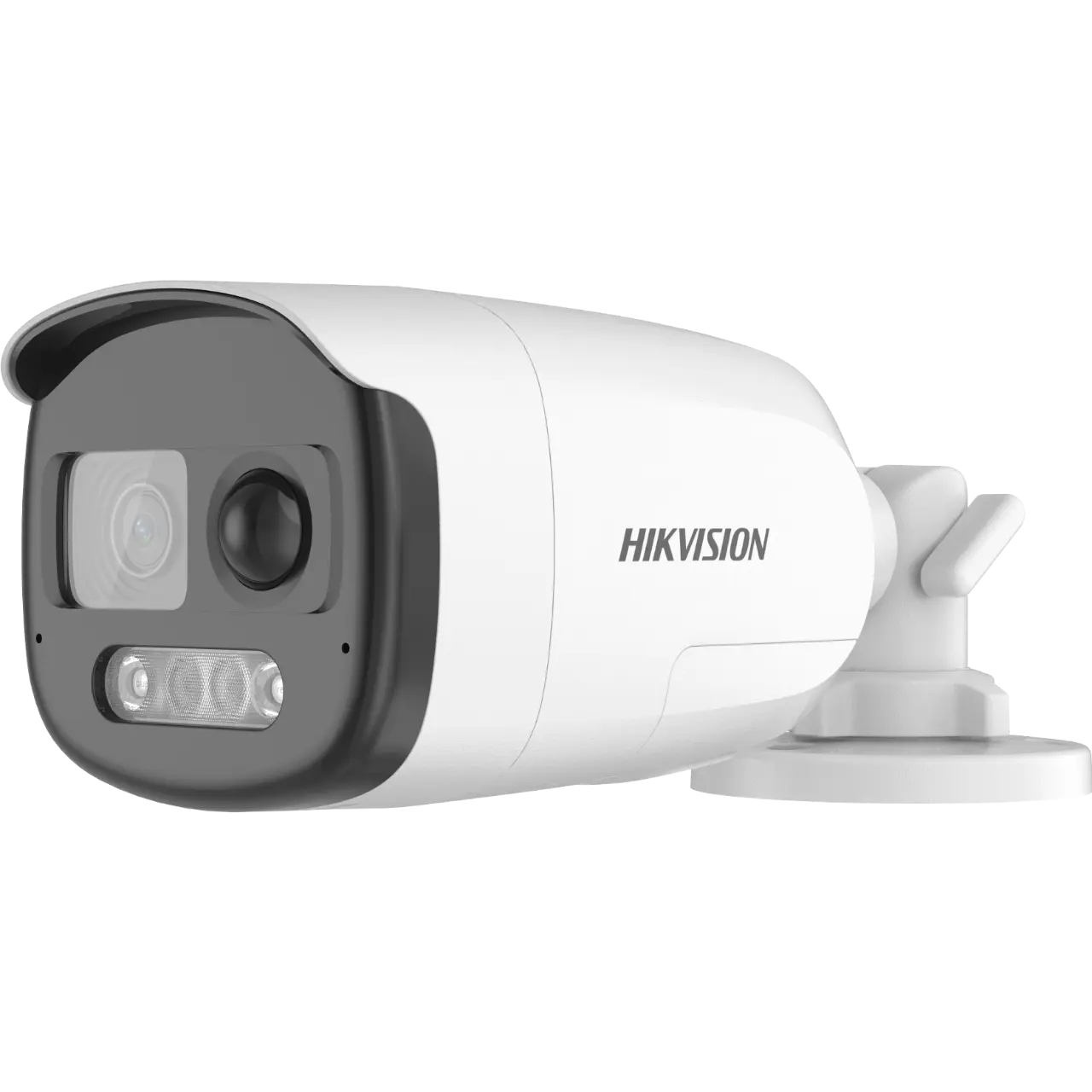

DS-2CE12DF3T-PIRXOS 2 MP ColorVu PIR Siren Audio Fixed Bullet Camera
DS-2CE12DF3T-PIRXOS 2 MP ColorVu PIR Siren Audio Fixed Bullet Camera
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- Clear imaging against strong back light due to 130 dB true WDR technology
- 3D DNR technology delivers clean and sharp images
- 2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- Detects human body through heat-sensitive passive infrared (PIR)
- Active strobe light and audio alarm to warn intruders off
- High quality audio with audio over coaxial cable, built-in mic, and built-in speaker
- Water and dust resistant (IP67)
Technical Details
-
- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Signal SystemPAL/NTSC
- Slow ShutterMax. 16 times
- Lens
- Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116°
3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91°
6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
- Lens MountM12
- Illuminator
- Supplement Light TypeWhite Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
Summary
- General
- Power
12 VDC ± 25%, max. 11.4 W
*You are recommended to use one power adapter to supply the power for one camera.
- MaterialFront cover: Metal, Main body: Plastic
- Dimension82.6 mm × 77.1 mm × 213.2 mm (3.25″ × 3.04″ × 8.39″)
- WeightApprox. 467 g (1.03 lb.)
- Operating Condition-40°C to 60°C (-40°F to 140°F), humidity: 90% or less (non-condensing)
- CommunicationHIKVISION-C
- LanguageEnglish
