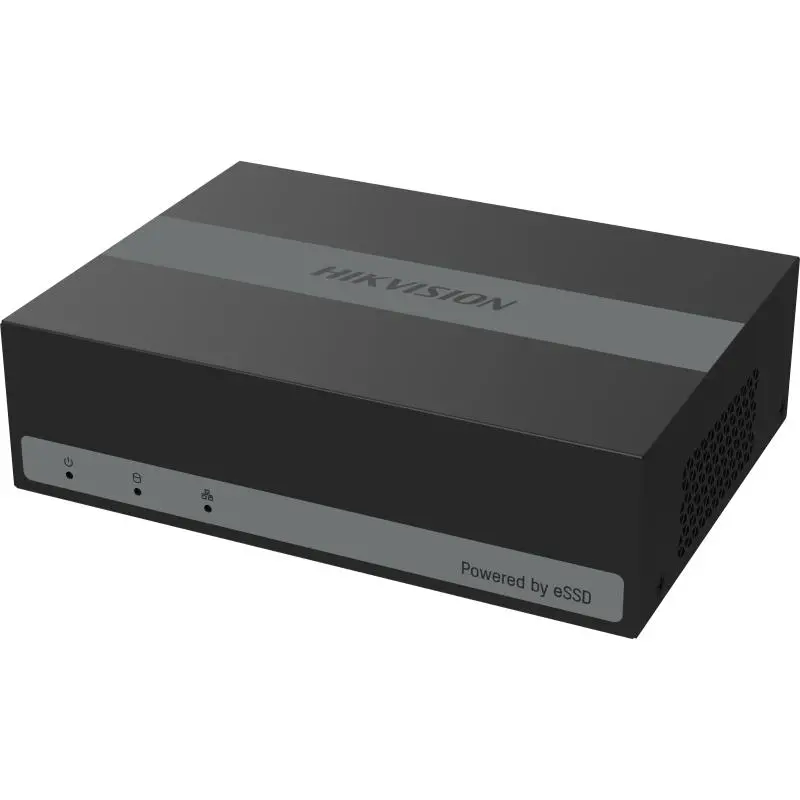

DS-E04HGHI-D 4-ch 1080pLite 1U H.265 eSSD DVR

Technical Details

• • Motion Detection 2.0
  • Human/Vehicle Analysis

    Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

    Quick search by object or event type is supported;

  • Recording
  • Video CompressionH.265 Pro/H.265
  • Encoding Resolution1080p Lite/720p/720p Lite/WD1/4CIF/CIF/QVGA
  • Frame Rate

    Main stream:

    1080p Lite/720p/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N)

    Note:

    1080p Lite/720p is 15 fps by default

    Sub-stream:

    4CIF@15 fps; CIF/QVGA@25 fps (P)/30 fps (N)

  • Video BitrateAccording to the actual scene, scene-adaptive bitrate control technology would automatically allocates appropriate bitrate to ensure the stability of recording period.
  • Stream Type

    Video, Video & Audio

    Note: In order to protect privacy, the device will only record video (without audio) by default. If you want to record audio, you shall manually enable audio recording. For operation details, refer to the user manual.

  • Audio CompressionG.711u
  • Audio Bitrate64 Kbps
  • Video And Audio
  • IP Video Input

    1-ch

    Up to 1080p resolution

    Support H.265+/H.265 IP cameras

  • Analog Video Input

    4-ch

    BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

  • HDTVI Input1080p25, 1080p30, 720p25, 720p30
  • AHD Input1080p25, 1080p30, 720p25, 720p30
  • HDCVI Input1080p25, 1080p30, 720p25, 720p30
  • CVBS InputSupport
  • HDMI Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • VGA Output1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
  • Video Output ModeHDMI/VGA simultaneous output
  • Audio Input4-ch via coaxial cable
  • Audio Output1-ch via HDMI
  • Synchronous Playback4-ch

Summary

General

• Power Supply12 VDC, 1 A
• Consumption≤ 5.4 W (with eSSD)
• Working Temperature-10 °C to 45 °C (14 °F to +113 °F)
• Working Humidity10% to 90%
• Dimension (W × D × H)151 × 121 × 46 mm (5.94 × 4.76 × 1.81 inch)
• Weight≤ 0.5 kg (with eSSD, 1.1 lb.)
