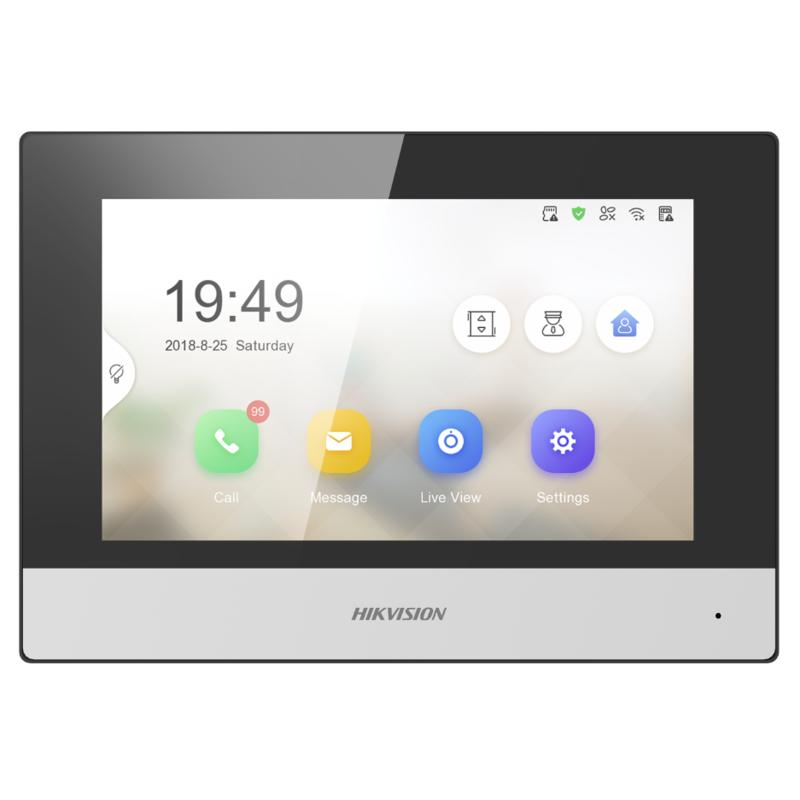

Hikvision DS-KH6320-WTE1: 7-inch Touchscreen IP-Based Indoor Station
Enhance your home security with the Hikvision DS-KH6320-WTE1, a 7-inch touchscreen indoor station for IP video intercom systems.
Enjoy convenient remote access, easy setup, and seamless integration with Hik-Connect for enhanced peace of mind.
Key Features of Hikvision DS-KH6320-WTE1:
- 7-inch Touchscreen: Large, user-friendly touchscreen for intuitive navigation and control.
- Hik-Connect App Integration: Remotely receive calls, open doors, and view live footage from anywhere using the Hik-Connect app.
- Easy Setup and Use: Simple and intuitive interface for easy installation and operation.
- Versatile Functionality:
- Receive calls and unlock doors from the indoor station.
- View live video from door stations and other connected cameras.
- Receive voice messages when no one answers the call.
- Integrate with elevator access control systems.
- Easy System Configuration: Configure the entire video intercom system directly from the indoor station.
Benefits Hikvision DS-KH6320-WTE1:
- Enhanced Convenience: Remote access and control through the Hik-Connect app.
- Improved Security: Enhanced situational awareness with live video monitoring and voice communication.
- User-Friendly Interface: Easy to use and navigate, making it suitable for all users.
- Versatility: Supports a wide range of functions, including door unlocking, voice messaging, and elevator access control.
Purchase from Iken Computers :
For a convenient and hassle-free shopping experience, consider purchasing the DS-KH6320-WTE1 from Iken Computers, the national distributor of Hikvision products in Kenya. Iken Computers offers a wide range of security solutions, including video intercom systems, at competitive prices and with excellent customer service.
Feature | Description |
---|---|
System parameters | |
Operation system | Linux |
ROM | 32 MB |
RAM | 128 MB |
Processor | Embeded high performance processor |
Display parameters | |
Screen size | 7-inch |
Operation method | Capacitive touch screen |
Type | Colorful TFT |
Resolution | 1024 × 600 |
Video parameters | |
Lens | / |
Resolution | / |
FOV | / |
Wide dynamic range (WDR) | / |
Video compression standard | / |
Focal length | / |
Audio parameters | |
Audio input | 1 built-in omnidirectional microphone |
Audio compression standard | G.711 U、G.711 A、G.722.1 |
Audio output | 1 built-in loudspeaker |
Audio compression bitrate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Volume adjustment | Adjustable |
Capacity | |
Message capacity | TF card inserted: 200 captured pictures, 200 alarm records <br> Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
Notice capacity | 200 |
Linked indoor extensions capacity | 16 |
Linked doorphone capacity | 17 |
Linked network camera capacity | 16 |
Network parameters | |
Network protocol | TCP/IP, SIP, RTSP |
Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
Bluetooth | / |
3G/4G | / |
Zigbee | / |
Device interfaces | |
Alarm input | 8 |
Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
TAMPER | / |
RS-485 | 1 RS-485 (Half duplex) |
USB | / |
TF card | Support TF card, up to 128 G |
Alarm output | 2 |
Lock control | 2 relays, Max. 30 VDC 0.3 A |
General | |
Button | / |
Installation | Surface mounting |
Indicator | / |
Weight | Net weight: 355 g (0.8 lb) <br> Gross weight: 683 g (1.5 lb) |
Protective level | / |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working humidity | 10% to 90% (no-condensing) |
Dimension (W × H × D) | 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″) |
Battery | / |
Application environment | Indoor |
Power consumption | ≤ 5 W |
Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
